Compact 5500CV
Premium compact cardiovascular ultrasound system
Compact 5500CV
Premium compact cardiovascular ultrasound system
Some compact ultrasound systems have capabilities as small as their size. Philips Compact Ultrasound System 5500CV for cardiovascular imaging is different. It packs powerful cardiac scanning performance into a portable system to help you quickly reach the answers you need in a quick bedside check or complex exam. Compact 5500CV includes many of the advances of Philips premium ultrasound in a compact design with proven workflow for valuable insights. In fact, it offers image quality comparable to Philips premium cart-based systems. Compact 5500CV is compact without compromise.
Clinical image gallery
- Apical 4 chamber with color
- Auto Measure shown using S5-1 transducer
- Live 3D TEE shown with X8-2t

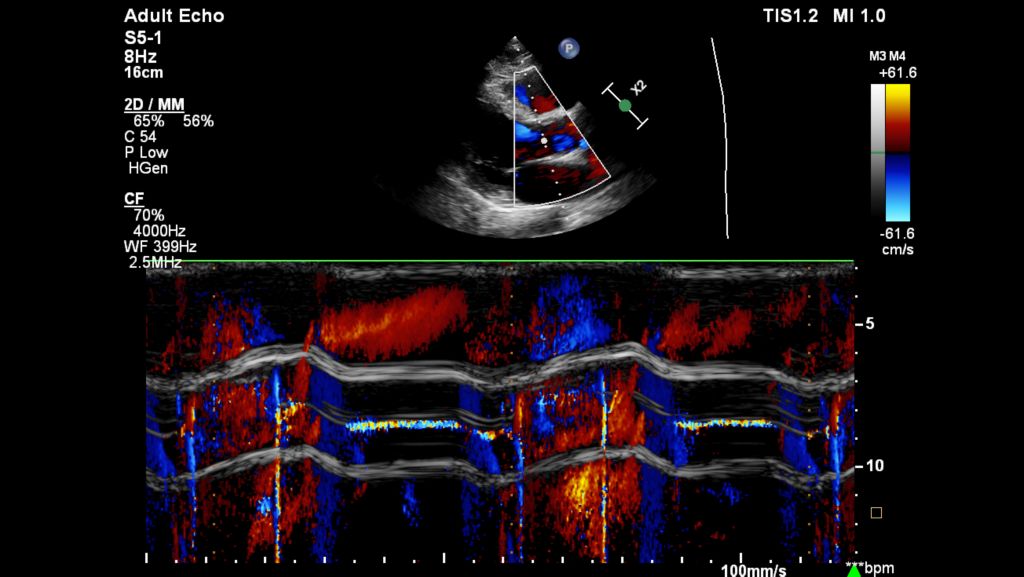

- Color M-mode Image
- PDA Closure Device with Color Compare using S12-4 transducer
- AutoStrain LV showing GLS and results
- Auto Measure shown using S5-1 transducer
- 3D Auto LAA
- 2D TEE of Left Ventricle
- Tissue Doppler Imaging
- 2D TEE with color
- Live 3D TEE shown with X8-2t
- Aortic Valve pulsed wave Doppler
Features
Familiarity streamlines how you’re able to work
Leverage the shared architecture of Compact 5500CV, Philips EPIQ CVx and Affiniti CVx ultrasound systems to potentially scan more patients, more quickly with proven workflow. Familiar user interfaces, touchscreens, features, workflow and remote service and updates support high productivity with the premium-level clarity you expect from Philips. 90% of users agree that the common UI and workflow shared with EPIQ and Affiniti may help reduce user training.[1]
Now your ultrasound system can do more than scan
Tap into wider expertise directly from the ultrasound system using Collaboration Live with multi-party[4] tele-ultrasound for access to other team members for decision support and training. Up to six users can quickly and securely talk, text, screen share and video stream directly from the ultrasound system for access to multiple clinical resources at a distance, allowing for fast time to diagnosis. Give patients access to your team’s full expertise, regardless of location. Recent studies determined that the use of Collaboration Live reduced exam time by 57%.[1]
Bring care where needed
Designed to be robust and reliable, count on your system for the durability needed to help you deliver superb care no matter the setting. Compact 5500CV offers award-winning mobility (recipient of both the iF Design Award and the Red Dot Product Design Award). Quickly boot up from transport mode for up to 2 hours of scanning with extended batteries. Scan comfortably with favorable system ergonomics, including the 10” adjustable touchscreen. Easily get your data where it needs to go with DICOM structured reporting. Choose a flexible configuration of laptop with cart and/or travel case.*
Specifications
- Compact System
- Width
- 41.1 cm / 16.2 in
- Height
- 8.6 cm / 3.4 in
- Depth
- 40.6 cm / 16.0 in
- Weight
- 10.57 kg/23.3 lb including internal battery
- Monitor
- 15.6" 1920x1080 LCD panel
- Power
- 100-140 V, ~50-60 Hz, 250 VA
- AC adapter
- Input: 100-240 VAC, 50/60 HZ
- Output: 24 VDC @ 250 W
- Power consumption
- 310 VA
- System battery
- 14.4 VDC. 98 WH
- AUX display port
- 1920x1080 resolution
- Connectors
- Ethernet and two USB 3.0 connectors
- Compact Cart
- Cart base
- 48.8 cm x 48.8 cm / 19.2 in x 19.2 in
- Vertical adjustment
- 82 cm – 100.1 cm / 32.2 in - 39.3 in
- Wheels
- Four 5” locking swivel wheels
- rear two wheels include steering lock mechanism
- Other specification details
- Integrated Ethernet connector
- Integrated keyboard in slide out drawer
- Probe holders on both sides to accommodate up to four transducers
- Three storage bins provided, large, small and rear handle tray
- Two USB connectors
- Power consumption
- 660 VA max
- depending on system configuration
- Standard cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W
- Integrated AC adapter in bottom compartment
- Integrated keyboard in slide-out drawer
- Extended cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Integrated keyboard in slide-out drawer
- Three batteries to provide additional scanning time
- Deluxe cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Integrated keyboard in slide-out drawer

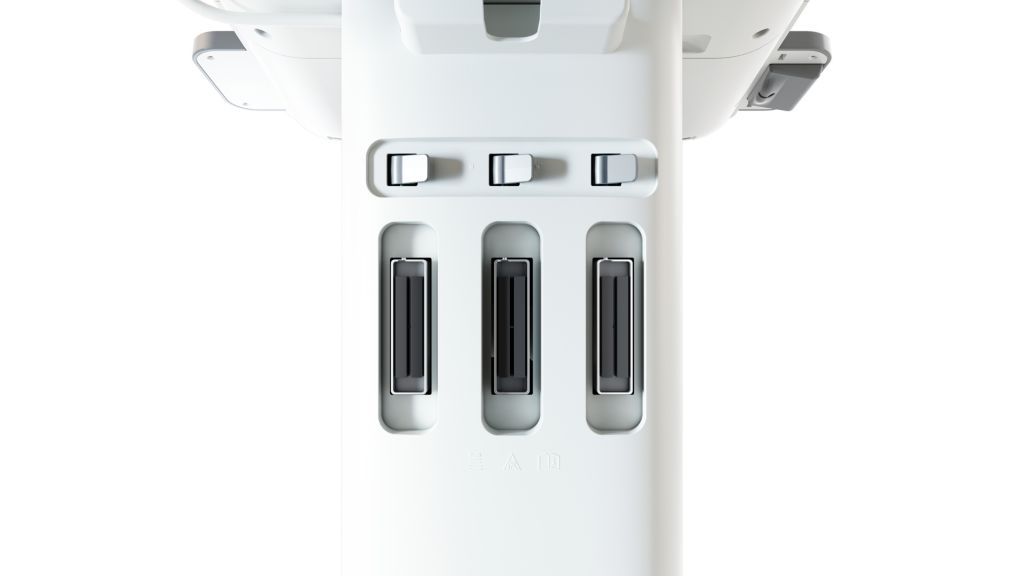

- Multiport adapter provides ports for attaching up to three imaging transducers
- Three batteries to provide additional scanning time
- Premium cart
- Input: 100-240 VAC, 50/60 Hz
- Output: 24 VDC @ 250 W + 5 V @ 1 W
- Integrated keyboard in slide-out drawer
- Multiport adapter provides ports for attaching up to three imaging transducers
- Small profile B/W video printer
- Three batteries to provide additional scanning time
