Nasal Alar FAST SpO₂ Sensor, Case of 20
Pulse oximetry supplies
Nasal Alar FAST SpO₂ Sensor, Case of 20
Pulse oximetry supplies

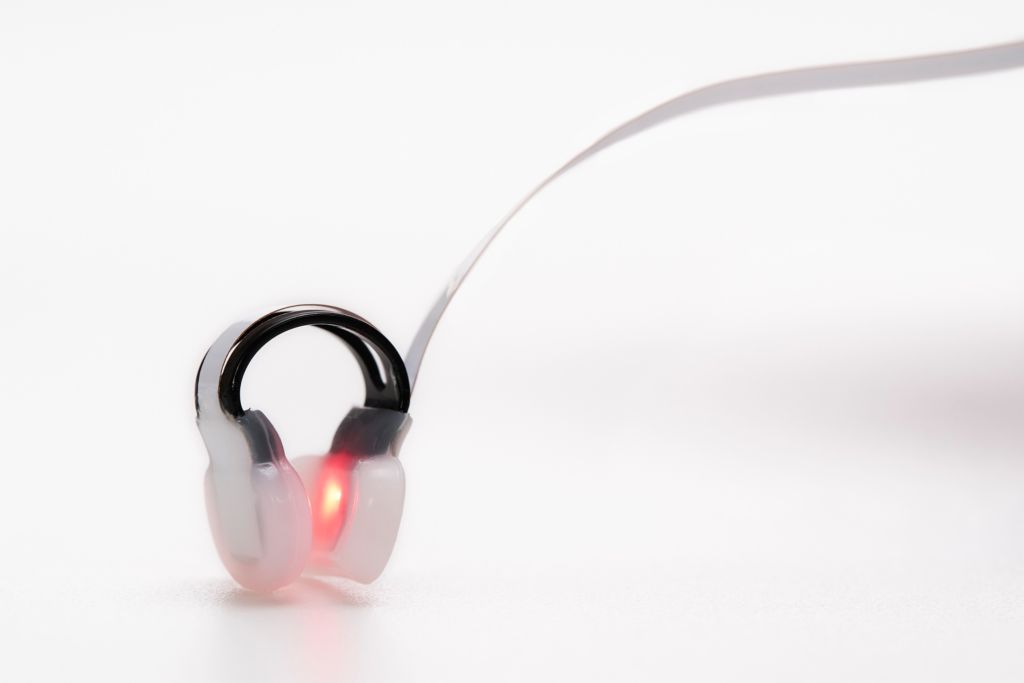

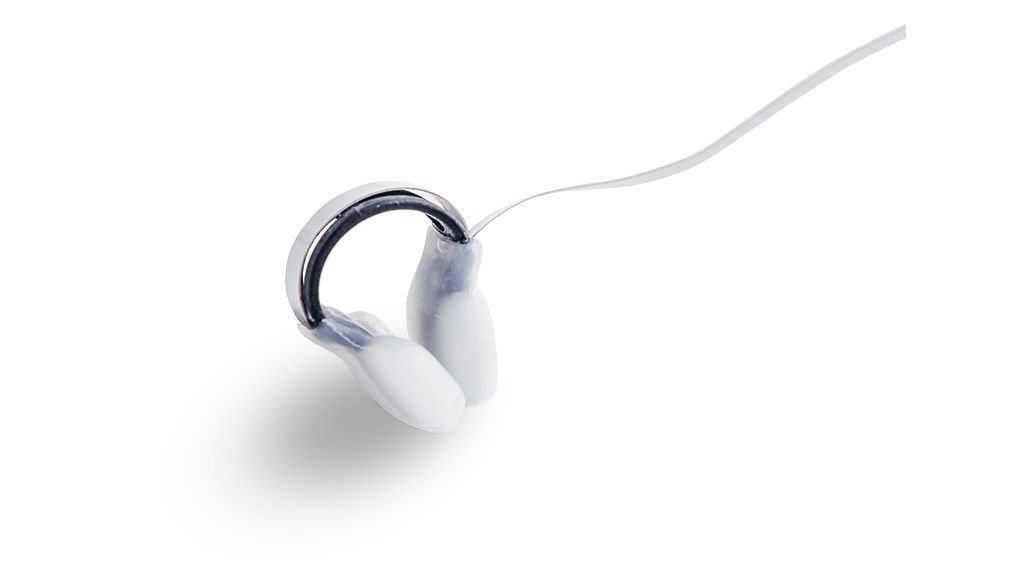

The Philips Nasal Alar FAST SpO2 Sensor ensures dependable monitoring of oxygen saturation at the nasal ala, where a robust blood supply from the carotid arteries is maintained. This location generates a strong, consistent signal and is less susceptible to vascular constriction compared to extremities,¹ providing accurate and reliable signals, even in challenging conditions involving low perfusion and centralization of blood flow.² Designed for comfort and durability, the sensor is non-adhesive and can be used on one patient for up to seven days across multiple care areas.
Features
Customer story: real-world experience
Conventional pulse oximeters are placed on the finger, but for patients with poor perfusion the Philips Nasal Alar SpO2 sensor offers an exciting and practical alternative. Watch this video to hear Dr. Lieven Vergote and Mr. Kristoff Colman from the A.S.Z. Hospital in Aalst, Belgium, share their real-world experience of the Alar sensor and explain some of the benefits of this solution.
Reliable and comfortable
When compared to forehead sensors, the Nasal Alar SpO₂ Sensor showed lower occurrence of pressure injuries over a period of 5 days of sensor use.³ The alar sensor doesn’t require headbands or adhesive, exposing the patient to minimal heat and pressure, and allowing patients' hands to be sensor-free.

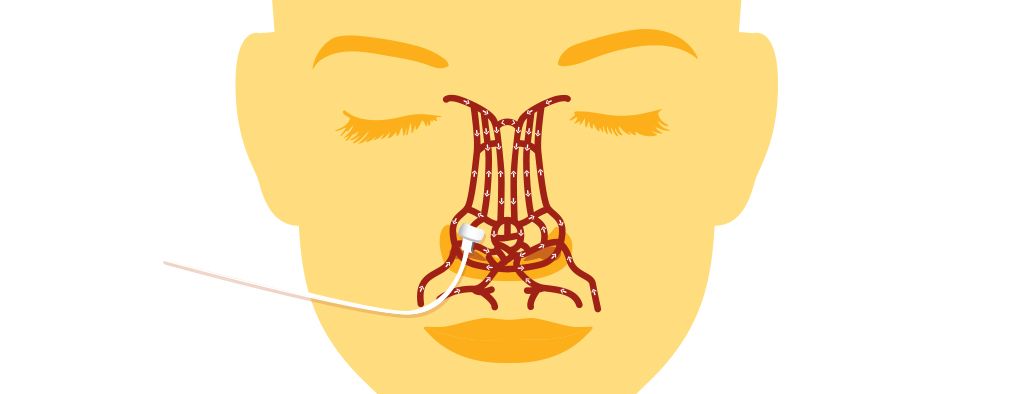

The nasal ala provides reliable measurement
The nasal alar consistently maintains a good blood supply from the internal and external carotid arteries, producing a strong, steady signal and is less prone to vasal constriction than the extremities. It provides reliable results even during critical states of low perfusion and blood flow centralization.
Specifications
- Product details
- Package dimensions
- 270 x 230 x 127 mm (10.5 x 9 x 5 in)
- Product details
- Use with non-Philips healthcare equipment
- No
- Use with Philips healthcare equipment
- All Philips monitoring devices with Philips FAST SpO2**
- Color
- White
- Product category
- SpO₂
- Product type
- Sensor
- CE certified
- Yes
- Single-patient use or multi-patient use
- Single-patient use
- Package weight
- 1.36 kg (3 lbs)
- Packaging unit
- 20 sensors
- Not manufactured with natural rubber latex
- Yes
- Sterile or non-sterile
- Non-sterile
- Shelf life
- Five years
- SpO2 Sensor
- Adapter Cable Compatibility
- M1943A, M1943AL
- SpO₂ sensor
- Patient application
- Pediatric and adult
- Application site
- Nasal ala
- Cable length
- 1 m (3.28 ft)
Related products
- Designed for use with Philips SpO₂ monitors and sensors, the M1943A 8-pin adapter cable is 1.1 m (3.6 ft) in length and features a D-sub connector. It adapts 9-pin sensors to 8-pin sockets. It can be used with these sensors: M1131A, M1132A, M1133A, M1134A, M1140A, M1191T, M1192T, M1193T and M1196T.
- Designed for use with Philips SpO₂ monitors and sensors, the M1943AL adapter cable is 3 m (9.8 ft) in length and features a D-sub connector. It adapts 9-pin sensors to 8-pin sockets. It can be used with these sensors: M1131A, M1132A, M1133A, M1134A, M1140A, M1191T, M1192T, M1193T and M1196T.
- The Philips IntelliVue X3 is a compact, dual-purpose, transport patient monitor featuring intuitive smartphone-style operation and offering a scalable set of clinical measurements.
- The MX100 is a flexible, reliable way to monitor patients on the move - and at the bedside - with a single, portable, stand-alone monitor, It is small and light, yet offers a broad, scalable set of clinical measurements. This rugged, battery-powered device features a built-in 15.5cm (6.1") touchscreen and familiar smartphone-like operation for ease of use.
- The IntelliVue Pulse Oximetry Module is for use with IntelliVue Patient Monitors MP40-MP90 and MX500-MX850. The module allows non-invasive measurement of arterial oxygenation saturation using light transmitted through tissue.
- The single patient use Nasal Alar Multi-Compatible SpO₂ Sensor* measures arterial oxygen saturation at the ala, which is an optimal measurement site for difficult-to-measure patients. It produces a strong, consistent signal, even in patients with poor perfusion¹. Designed for comfort and durability, the sensor is non-adhesive and can be used for up to seven days.
Disclaimer
* Nasal Alar FAST SpO₂ Sensor is not released in all geographies. Please check with your Philips representative for complete portfolio availability.
**Refer to Instructions for Use for the full list of compatible devices or check with your Philips representative for more information.
1. Morey TE, Rice MJ, Vasilopoulos T, Dennis DM, Melker RJ.Feasibility and accuracy of nasal alar pulse oximetry. Br J Anaesth. 2014; 112(6):1109-14. doi: 10.1093/bja/aeu095.
2. Schallom M, Prentice D, Sona C, Arroyo C, Mazuski J. Comparison of nasal and forehead oximetry accuracy and pressure injury in critically ill patients. Heart & Lung 2018, 47:93-99. https://doi.org/10.1016/j.hrtlng.2017.12.002
3. Schallom M, Prentice D, Sona C, Mazuski J. Comparison of Nasal and Forehead Oximetry Accuracy and Pressure Injury in Critically Ill Patients. Critical Care Medicine. 2016;44:12(Suppl.).
