Tempus ALS
Monitor/Defibrillator

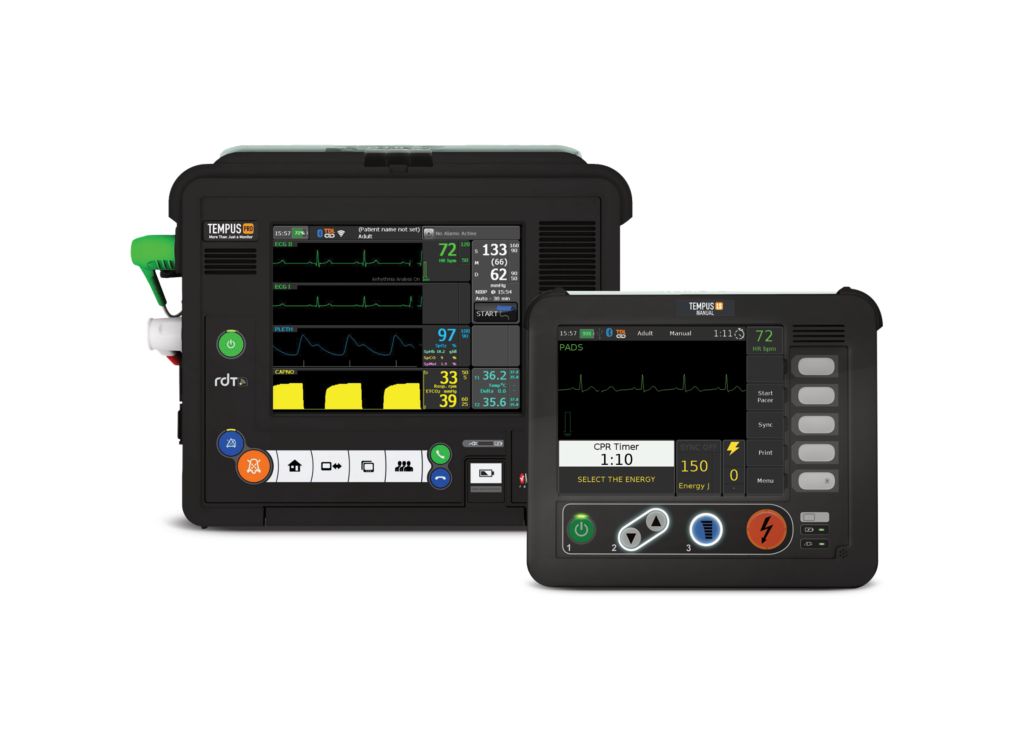

Tempus ALS
Monitor/Defibrillator
The Tempus ALS¹ is a modern approach to prehospital monitoring and defibrillation. The Tempus Pro monitor and Tempus LS-Manual defibrillator³ work together to create a powerful, trustworthy solution that empowers caregivers to focus on the patient, unburdened by their equipment.
Features

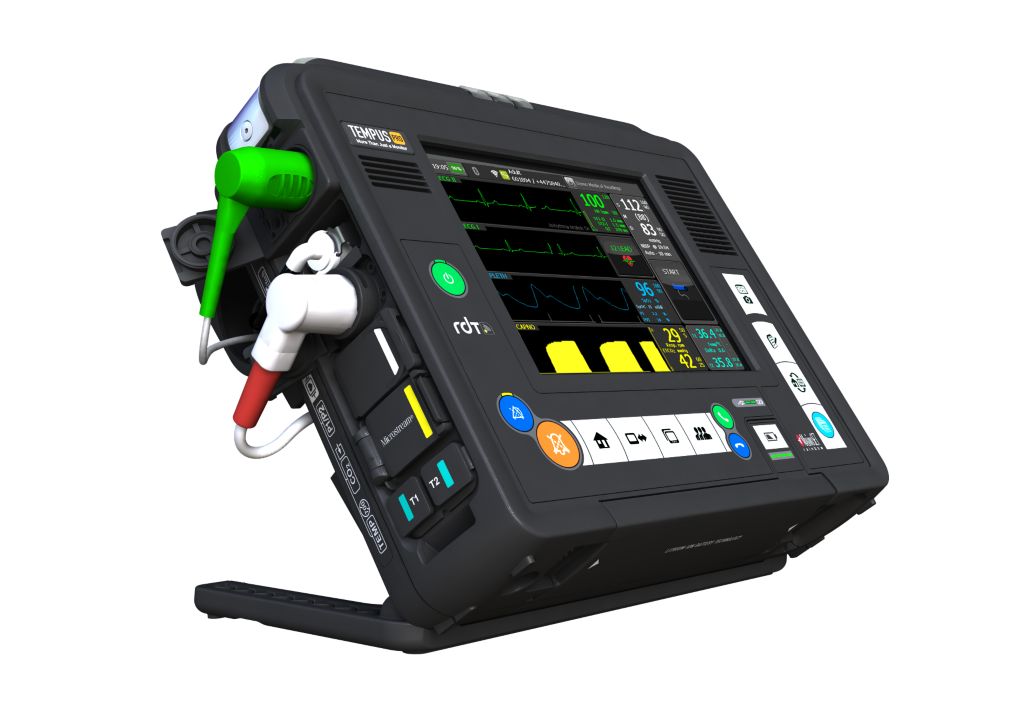

Powerful, flexible monitoring and resuscitation
With its user-friendly layout, the lightweight (7 lbs) Tempus Pro monitor provides a range of monitoring parameters including: 12-lead ECG to monitor, arrhythmia, ST elevation and QT segment with alarms, capnography, noninvasive blood pressure, Masimo rainbowᵀᴹ SETᵀᴹ options, up to four lines of invasive pressure, and up to two lines of temperature².
Tempus LS-Manual is small enough (4.4 lbs)to be stored in a first-in bag.
Ready to use when you need it
The Tempus Pro Li-ion battery allows at least 10 hours and 45 minutes of use with the display brightness at 60%. Rated at IP66, you can take it where you need it, even in challenging conditions. And with both wired and wireless connections (Cat5, Wi-Fi, 3G and Bluetooth), you can count on secure, real-time data transmission even when communications are poor.⁶

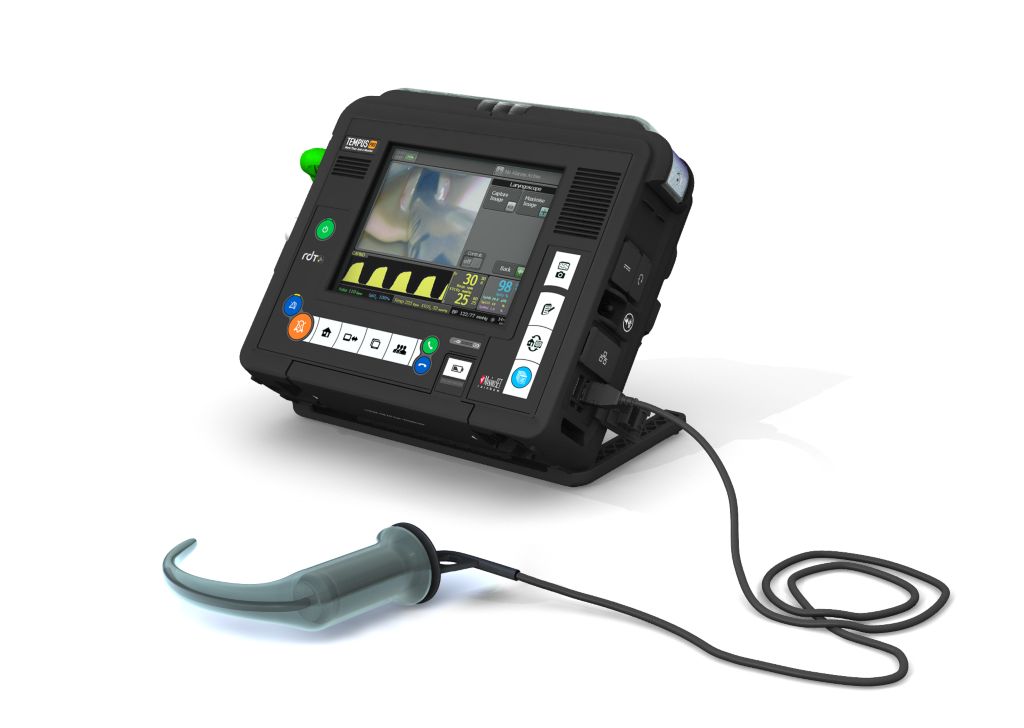

Video laryngoscopy on site
An optional plug-in Karl Storz-C-MAC® video laryngoscope imager offers video laryngoscopy support during airway management. Disposable Macintosh and D-Blades allow visualization of laryngoscope images on the Tempus Pro display, capturing still images for transmission to the patient record. View vitals, including capnography and SpO₂, while intubating the patient.
Specifications
- Physical dimensions
- Tempus Pro size
- Standalone size: 10.3" wide x 8.5" high x 3.9" deep
- Tempus Pro weight
- Standalone weight (printer version): 7 lbs. with battery (without accessories)
- Tempus LS-Manual size
- Standalone size: 7.9" wide x 6.5" high x 2.8" deep (excluding rear clip)
- Tempus LS-Manual weight
- Standalone weight: 4.3 lbs. with battery (without accessories)
- Physical characteristics
- Weight
- 4 lbs
- Control interface
- Event button
- Quickly add drugs, fluids, therapies and interventions to the patent record
- Tempus LS-Manual interface
- Clearly labeled buttons
- Tempus Pro alarms
- Alarms
- Adjustable <lt/>= 85 dBA at 1 m
- Alarm indicator
- 360° alarm visible indicator lights
- User configurable
- Visual and audible alarms
- Display
- Format
- User-selectable display formats
- Modes
- High-contrast, NVG compatible
- Tempus Pro
- Color 6.5" 640x480 pixels, 130 klux daylight readable display
- Tempus LS-Manual
- Color 5.7", 640x480 pixels
- On-screen trends & events
- Graphical and tabular format
- All vital signs parameters
- Records
- Summary record of care of drugs, fluids, therapies and interventions
- Battery and power
- Tempus Pro operating time⁴
- Min 10.75 hours (display brightness=60%) or min 11.5 hrs (display brightness = 30%)⁵
- Tempus LS-Manual monitoring time
- Greater than 12 hours ECG monitoring from a fully charged battery
- Tempus LS-Manual operating time
- At least 300 shocks at 200 J from fully charged battery
- Tempus LS-Manual and Pro battery type
- Rechargeable, user-replaceable lithium-ion battery
Related products
- Philips IntelliSpace Corsium unlocks the real power of the Tempus ALS¹ system by enabling users to quickly share data and collaborate. Corsium is a web-based software platform for near real-time² patient data transfer and two-way communication, designed for the modern EMS. By supporting the rich data capture from the Tempus ALS system, it supports decision making by enabling rich real-time² data transmission and two-way communication between healthcare professionals.
- An advanced, portable, multi-parameter vital signs monitor with integrated telemedicine. Tempus IC2 allows trained non-medical users to manage medical emergencies in the air, at sea, and in remote locations. Along with built-in ease of use, the Tempus IC2 features clear visual guidance and automated data collection, helping users to feel confident in managing a medical emergency.
- The Tempus Pro places the needs of the prehospital care professional at the heart of its design. Ground-breaking in functionality, it is light enough to carry and small enough to hold in one hand. Rugged, yet highly intuitive to operate, it can easily be deployed in a wide range of clinical scenarios, with advanced capabilities to allow clear, documented decision-making.
Disclaimer
¹ Tempus ALS is a modular monitor/defibrillator system consisting of Tempus Pro monitor and Tempus LS-Manual defibrillator.
² Optional, additional feature.
³ Tempus LS-Manual (manual mode only) is 510(k) cleared. Tempus LS (AED & manual mode) is not available for sale in the US
⁴ Test done without printing
⁵ With ECG, Sp02, EtCO2, temperature (x2) and NBP every 15 minutes and display active 50% of the time; max 14 hours with battery saving mode activated
⁶ Reliable data transmission (EDS) data is streamed automatically during the initial assessment and transport of the patient using Enhanced Data Service (EDS) protocol. EDS is designed to ensure effective data transfer even when the underlying connectivity.
⁷ Depending on network availability, there may be a 2-3 second delay between display of the data on the Tempus Pro and display of the same data on IntelliSpace Corsium
C-MAC is the property of Karl Storz
Bluetooth is licensed by the Blu etooth SIG.
Masimo rainbowᵀᴹ SET®, PVI®, SpHb®, SpMet®, SpCO® and SpOCᵀᴹ are the property of Masimo Inc.
Oridion and Microstream are trademarks of Medtronic.
