XperGuide ablation
Treatment planning and live needle guidance tool
XperGuide ablation
Treatment planning and live needle guidance tool
Performing successful tumor ablations, without compromising adjacent tissue, requires a clear understanding of the tumor size, the specific needle's ablation area, and the optimal path to the target.
Clinical image gallery
- Lung Microwave Pre-treatment XperCT with XperGuide plan.

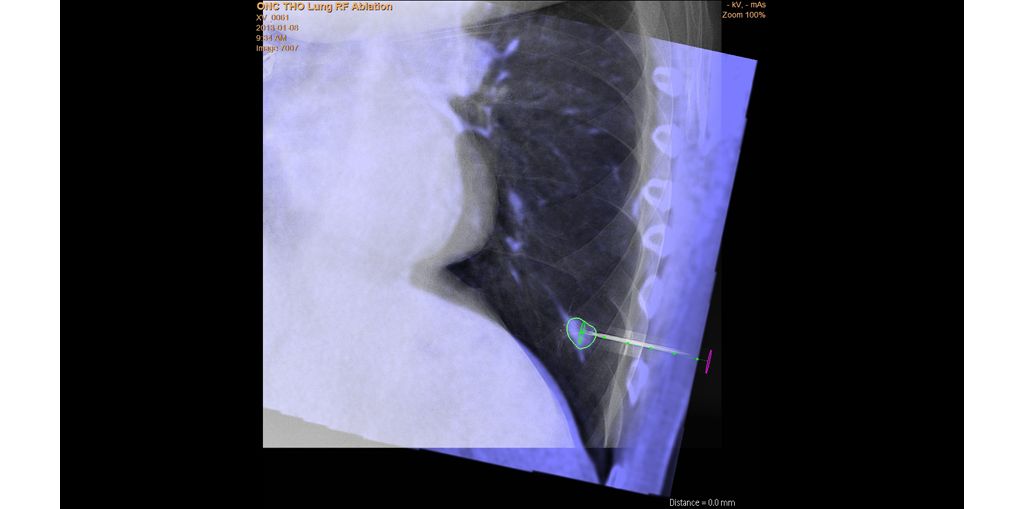

- Lung Microwave Pre-treatment XperCT with XperGuide ablation plan (lateral).

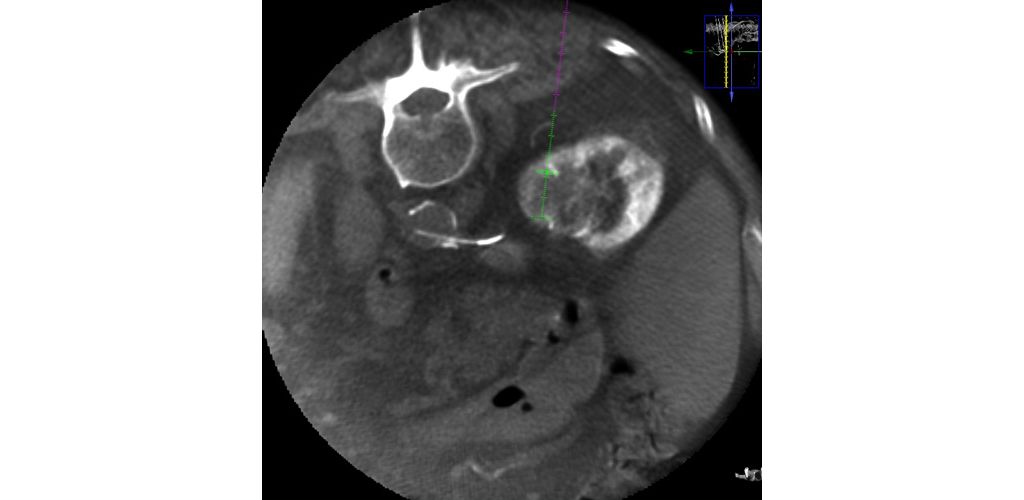

- Kidney Cryo Post-ablation XperCT showing ice-ball extent and complete tumor coverage.
Features
Facilitate successful tumor coverage
Until now, it has been difficult to visualize the ablation zone with a high degree of accuracy using conventional methods. Our unique XperGuide ablation software visualizes the specific ablation zones and distance between the planned ablation needles in 3D based on the manufacturer's specifications of each needle. This visualization shows the isotherm of each needle on an XperCT or on a pre-acquired MR or CT volume. It assists clinicians in planning the optimal placement of the ablation needle to cover the targeted lesion. The needle path can be planned by drawing it or by defining entry and target locations on XperCT, MR, or CT slices. By allowing the accurate planning of multiple needles, XperGuide's ablation software assist clinicians in treating tumors and potentially reduces the risks of re-do's.
Achieve accurate needle placement
During procedure planning, XperGuide Ablation visualizes the specific needle isotherms in relation to the patient's anatomy to reduce the risk of compromising adjacent organs or other structures. During the procedure, XperGuide shows the progression of one or more needles in real-time and assists clinicians in reaching the target area as planned.
Intuitive workflow and customizable isotherm visualizations
The manufacturers' specifications of the ablation needles can be entered on the Applicators tab of XperGuide Ablation. Up to 60 different applicator settings can be entered for all current ablation techniques: RF,microwave, and cryoablation. The parameters for the current applicator can be changed as needed and saved for subsequent examinations. The applicator parameter list can be transferred to other Philips Allura systems.
