PageWriter TC70
Cardiograph
PageWriter TC70
Cardiograph
Philips PageWriter TC70 cardiograph is designed to simplify diagnostic ECG testing and streamline workflow – where an automated workflow and outstanding clinical support is critical.
Features
Visual guidance to simplify ECGs

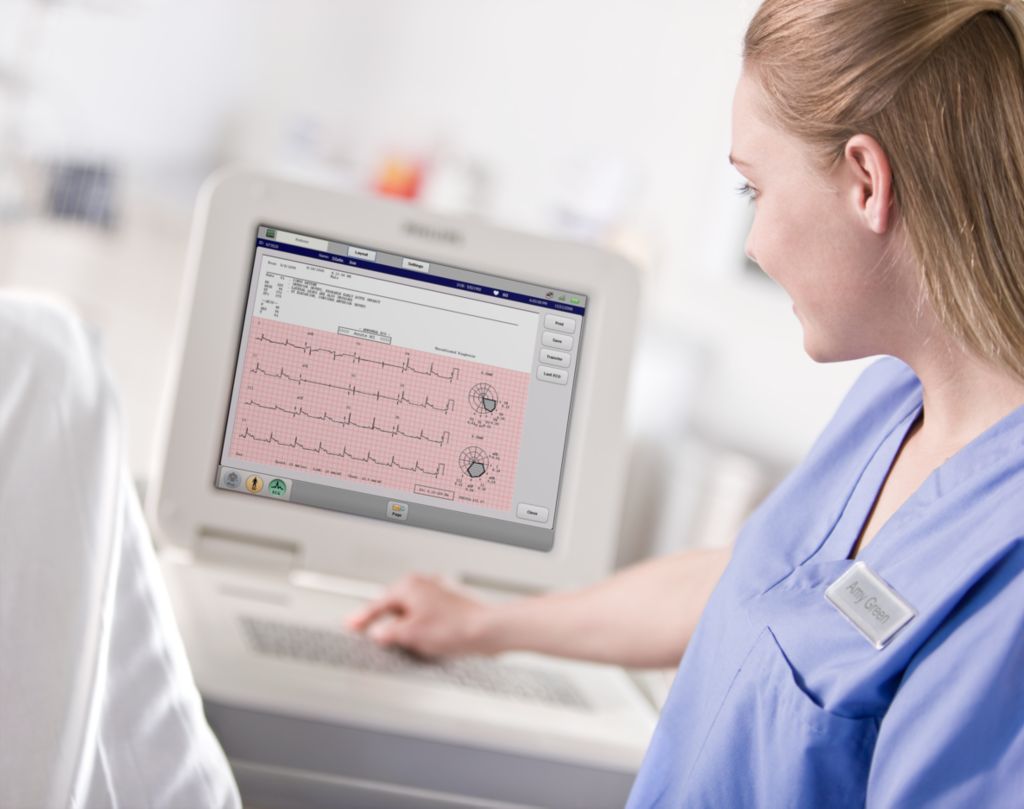

With the PageWriter TC70 cardiograph, each button lights in sequence, prompting you to take an ECG as easily as 1-2-3. The high-resolution, 15" touchscreen further streamlines ECGs.
Lead placement aids accurate placement of leads on the patient
The anatomic patient interface module and LeadCheck help support correct lead placement, while the 3-in-1 Trident lead wires reduce tangling.
Advanced bidirectional network communication for secure connection
With industry standardized DICOM, XML, and PDF report formats, via wireless LAN, or modem and fax, PageWriter TC70 fits seamlessly into your existing IT infrastructure. So you’re always connected, without being locked in. It delivers secure, wireless connectivity via standard LAN protocols to protect the privacy of patient, staff, and financial information.
Specifications
- ECG Functions
- Simultaneous Lead Acquisition
- 12 leads standard; up to 18 leads optional
- Full Disclosure
- Twelve minute history of up to 18 leads, complete ECG of any 10 seconds
- Timed ECG
- Yes
- User Interface
- Keyboard
- Full alphanumeric capability QWERTY keyboard
- ADT (D02)
- Query and retrieval of patient demographic information
- Full patient demographic information can be automatically retrieved
- STEMI Diagnostic Aids
- Graphical ST Vector
- Polar ST Maps with frontal and transverse planes available on two ECG report formats, STEMI-CA criteria
- Critical Values
- Yes
- Networked Features (requires IntelliSpace ECG)
- Orders
- Up to 200 pending orders can be stored on the cardiograph
- Signal Processing
- Patient Interface Module
- 8,000 samples per seconds on individual leads for 12 lead or up to 18 ECG
- Pre-Processing Filters
- AC Noise
- AC noise (None, 50 Hz, 60 Hz)
- Presentation Filters - 10 sec Reports
- High Pass
- (0.05 Hz, 0.15 Hz, 0.5 Hz)
- Display
- Size
- 30.4cm x 22.8cm color liquid crystal touch screen display with backlight
- Resolution
- 1024 x 768 pixel resolution
- Patient connections
- Patient Interface Module (PIM)
- Remote, microprocessor-controlled digital module
- Presentaton Filters - Rhythm
- Low Pass
- (40 Hz, 100 Hz, 150 Hz)
- Printer
- Type
- High-resolution, digital-array printer using thermal-sensitive paper
- Resolution
- 200 dpi (voltage axis) by 500 dpi (time axis) at 25 mm/se
- Mechanical
- Dimensions
- 330 x 405 x 135 mm/12.99 x 15.94 x 5.31 in
- Weight
- 13 kg/28 lbs
- Connectivity
- LAN
- 10/100 Base-T IEEE 802.3 Ethernet via RJ45 connector (standard)
- Wireless (D21)
- Optional software required for wireless LAN connection.
- Wireless credential
- Wireless LAN connection is 802.11 a/b/g/n compatible.
- Internal storage
- Up to 200 ECGs to internal flash memory
- External storage
- Up to 200 ECGs per USB Memory Stick (optional)
- Automated data input
- Bar code reader (H12)
- Reads Code 39 (standard and full ASCII)
- Flexible field data entry
- Yes
- Safety and Performance
- International Standards
- Classification (IEC 60601-1)
- Electrical
- Battery
- SMBus compliant batteries
- Battery capacity (per battery)
- 7800 mAh (per battery)
- Operating condition
- 9.0 to 12.6 VDC
- Battery recharge
- Less than 8 hours to at least 90% capacity (RUN mode).
- Main power
- 35 to 44 W max per battery (continuous)
- Power consumption
- Fully charged, two batteries can support up to 7 hours under normal usage.
- Environmental
- Operating conditions - Temperature
- 10° to 40 °C (50° to 104°F)
- Operating conditions - Humidity
- 10% to 90% relative humidity (non-condensing)
- Operating conditions - Altitude
- Up to 4,572 m (15,000 ft.) altitude
- Storage conditions - Temperature
- -20° to 50 °C (-4° to 122°F)
- Storage conditions - Humidity
- 10% to 90% relative humidity (non-condensing)
- Storage conditions - Altitude
- Up to 4,572 m (15,000 ft.) altitude
